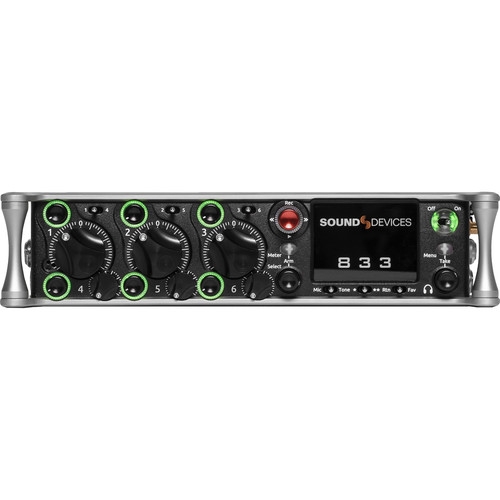

Portable Recorder
| Number of Tracks | WAV: 12 |
| Max Sample Rate/Resolution | 192 kHz / 32-Bit |
| Microphone | Built-In Slate Mic |
| Built-In Speaker | None |
| Display | Color LCD Touchscreen |
| Memory Card Support | SD, SDHC |
| Internal Storage | 256 GB |
Recording
| Audio File Formats | BWF, WAV |
| Sample Rates | WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz |
| Bit Depth | 32-Bit (A/D Conversion) 16 / 24-Bit (Recording) |
| Signal Processing | Auto Gain, Delay, EQ, Limiter, Low-Cut Filter, Output Limiting |
| Timecode | Yes |
| Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
| Clock Accuracy | 0.1 ppm / 0.25 Frame per 24 Hrs (Timecode) |
| Recording Time | WAV 44.1 kHz/24-Bit: 10.5 Mins per GB (All Channels) WAV 48 kHz/24-Bit: 9.6 Mins per GB (All Channels) WAV 96 kHz/24-Bit: 4.8 Mins per GB (All Channels) WAV 192 kHz/24-Bit: 2.4 Mins per GB (All Channels) |
Connectivity
| Analog I/O | 3 x XLR 3-Pin Female Balanced Line/Mic Input (Lockable) 3 x TA3 3-Pin Male Active-Balanced Line/Mic Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Aux Input 1 x TA3 3-Pin Male Balanced Com Return Input (Lockable) 1 x TA5 5-Pin Male Unbalanced Headphone/Mic In/Out (Lockable) 1 x 1/4″ TRS Female Unbalanced Headphone Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output 2 x XLR 3-Pin Male Active-Balanced Instrument/Line/Mic Output (Lockable) 2 x TA3 3-Pin Male Active-Balanced Instrument/Line/Mic Output (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output |
| Digital I/O | 1 x LEMO 5-Pin Timecode/Word Clock In/Out 1 x RP-SMA Antenna Input 1 x XLR 3-Pin AES3 / AES42 Input 2 x XLR 3-Pin AES3 Output |
| Phantom Power | +12 / 48 V (Selectable on Individual Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Host Connection | 1 x USB Type-C (USB 3.1 Gen 1) 1 x USB Type-A (Control, Text Entry) |
Performance
| Frequency Response | 10 Hz to 80 kHz ±0.5 dB (At 192 kHz) |
| Gain Range | Mic Inputs: Up to +76 dB Line Inputs: Up to +50 dB Fader: Up to +16 dB Headphone Outputs: Up to +20 dB |
| Max Input Level | Mic Inputs: +8 dBu Line Inputs: +28 dBu Aux Inputs: +18 dBu Com Return Input: +24 dBu Slate Mic Input: +12 dBu |
| Max Output Level | Line Outputs: +20 dBu TA3 Outputs: +6 dBu Headphone Outputs: +14 dBu |
| Headphone Output Power | 400 mW per Channel |
| Impedance | Mic/Line Inputs: 4 Kilohms Aux Inputs: 4 Kilohms Com Return Input: 8 Kilohms Slate Mic Input: 8 Kilohms Balanced Outputs: 250 Ohms (Mic Level) 120 Ohms (Line Level) 3.2 Kilohms (-10 dBV) Unbalanced Outputs: 1.8 Kilohms Headphone Outputs: 4 Ohms |
| THD+N | 0.005% |
| EIN | -129 dBu (A-Weighted) |
Power
| Power Options | Batteries, AC/DC Power Adapter |
| Battery Type | 2 x L Series (Not Included) |
| AC/DC Power Adapter | 10 to 18 VDC (Included) |
Physical
| Mounting Options | 1/4″-20 Female (Bottom) |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 8.7 x 2 x 6.7″ / 22 x 5.1 x 17 cm |
| Weight | 2.8 lb / 1.3 kg (Without Batteries) |
