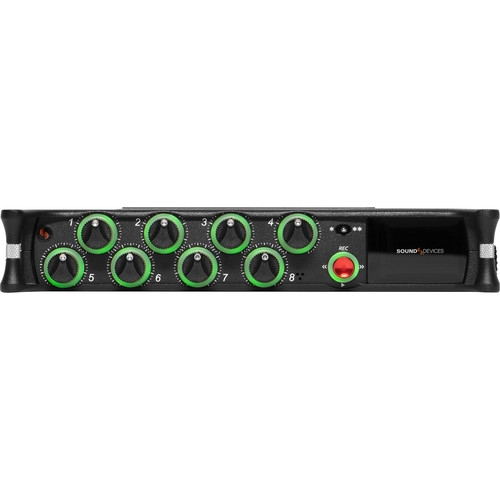

Portable Recorder
| Number of Tracks | WAV: 12 (10 Inputs + Stereo Mix) |
| Max Sample Rate/Resolution | 192 kHz / 32-Bit |
| Microphone | None |
| Built-In Speaker | None |
| Display | 1.6″ / 40.64 mm Color LCD Touchscreen |
| Memory Card Support | SD, SDHC, SDXC (Up to 512 GB) |
| Internal Storage | None |
Recording
| Audio File Formats | Recording: WAV |
| Sample Rates | WAV: 44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz |
| Bit Depth | 16 / 24 / 32-Bit (A/D Conversion) |
| Signal Processing | Delay, Limiter, Low-Cut Filter |
| Timecode | Yes |
| Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
| Clock Accuracy | ±2 ppm / 0.5 Frame per 24 Hrs (Timecode) |
Connectivity
| Analog I/O | 8 x Combo XLR-1/4″ 3-Pin Female Active-Balanced Line/Mic Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Aux/Mic Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Aux/Headphone Output 2 x TA3 3-Pin Female Balanced Line Output |
| Digital I/O | 1 x 1/8″ / 3.5 mm SMPTE Timecode Input 1 x 1/8″ / 3.5 mm SMPTE Timecode Output 1 x HDMI Type-D SMPTE Timecode Input 1 x BNC SMPTE Timecode/Word Clock Input 1 x BNC SMPTE Timecode/Word Clock Output |
| Phantom Power | +48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Plug-In Power | Yes, 3 V |
| Host Connection | 1 x USB Type-C (USB 2.0) 1 x USB Type-A (Control, Text Entry, Thumb Drive, USB 2.0) |
| Bluetooth | Bluetooth 4.0 (Remote) |
Performance
| Frequency Response | WAV: 10 Hz to 80 kHz ±0.5 dB (At 192 kHz) |
| Gain Range | Mic Inputs: +6 dB to +76 dB Line Inputs: -20 dB to +30 dB Mic/Aux Inputs: +10 dB to +40 dB Line/Aux Inputs: -10 dB to +20 dB Fader: to +20 dB Headphone Outputs: to +20 dB |
| Max Input Level | Mic Inputs: +14 dBu Line Inputs: +28 dBu Mic/Aux Inputs: -10 dBu Line/Aux Inputs: +10 dBu |
| Max Output Level | Outputs: +7.8 dBu TA3 Outputs: +18 dBu |
| Headphone Output Power | 300 mW per Channel |
| Dynamic Range | A/D Converters: 142 dB D/A Converters: 115 dB |
| Impedance | Mic/Line Inputs: 4 Kilohms (Active-Balanced) Mic/Aux Inputs: 100 Kilohms (Unbalanced) TA3 Outputs: 1.1 Kilohms (Balanced) Unbalanced Outputs: 500 Ohms BNC Inputs: 20 Kilohms 10 Kilohms BNC Outputs: 1 Kilohms 75 Ohms |
| THD+N | Inputs: 0.005% |
| EIN | -128 dBu (A-Weighted) |
Power
| Power Options | Batteries, AC/DC Power Adapter |
| Battery Type | 8 x AA (Included) 2 x L Series (Requires Optional Equipment, Hot-Swappable, Not Included) |
| AC/DC Power Adapter | 12 VDC at 3.75 A (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
Physical
| Mounting Options | 1/4″-20 Male (Top) 1/4″-20 Female (Bottom) |
| Operating Temperature | -4 to 86°F / -20 to 30°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 8.1 x 1.4 x 6.9″ / 206 x 36 x 175 mm |
| Weight | 32.1 oz / 0.9 kg (Without Batteries) |
