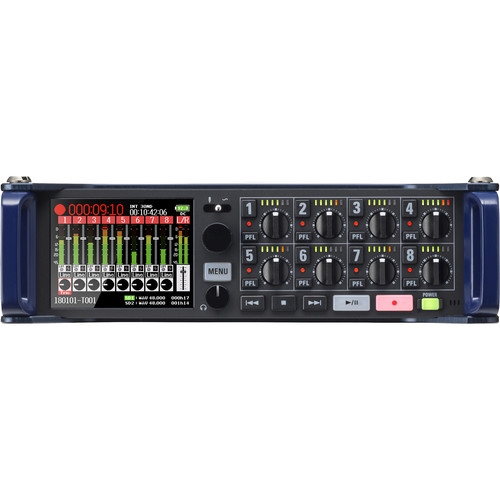

Portable Recorder
| Number of Tracks | WAV: 10 (8 Inputs + Stereo Mix) MP3: 2 |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Microphone | Built-In Slate Mic |
| Built-In Speaker | No |
| Display | Color LCD (Backlit) |
| Memory Card Support | SD (16 MB to 2 GB) SDHC (4 to 32 GB) SDXC (64 to 512 GB) |
| Internal Storage | None |
Recording
| Audio File Formats | BWF, ID3v1, MP3, WAV, iXML |
| Sample Rates | WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz MP3: 44.1 / 48 kHz |
| Bit Depth | 16/24-Bit |
| Bit Rates | 128 to 320 kb/s |
| Signal Processing | Limiter |
| Timecode | Yes |
| Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
| Clock Accuracy | ±0.2 ppm |
| Recording Time | WAV 48 kHz/24-Bit: 57.8 Mins per GB (Stereo) WAV 192 kHz/24-Bit: 14.4 Mins per GB (Stereo) |
Connectivity
| Analog I/O | 8 x Combo XLR-1/4″ TRS Female Line/Mic Input (Lockable) 1 x Proprietary Mic Capsule Input 2 x TA3 3-Pin Male Balanced Line Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/4″ TRS Female Unbalanced Headphone Output |
| Digital I/O | 1 x BNC Timecode Input 1 x BNC Timecode Output |
| Phantom Power | +24 / 48 V (Selectable on Individual Inputs) |
| Phantom Power Current | ≤10 mA per Channel |
| Host Connection | 1 x Mini-USB (USB 2.0) |
Performance
| Frequency Response | 10 Hz to 80 kHz +0.5/-1 dB (At 192 kHz) |
| Gain Range | Mic Inputs: +10 to +75 dB Line Inputs: -10 to +55 dB |
| Max Input Level | Mic Inputs: +14 dBu (Limiter On, at 0 dBFS) Line Inputs: +24 dBu (Limiter On, at 0 dBFS) |
| Max Output Level | Outputs: +24 dBu Aux Outputs: +10 dBV |
| Headphone Output Power | 100 mW per Channel into 32 Ohms |
| Dynamic Range | A/D Converters: 120 dBA D/A Converters: 106 dBA |
| Impedance | Mic Inputs: 2 kOhms Line Inputs: 2.6 kOhms Balanced Outputs: ≤150 Ohms Aux Outputs: ≤100 Ohms Headphone Outputs: ≤15 Ohms BNC Inputs: 4.6 kOhms BNC Outputs: ≤50 Ohms |
| EIN | ≤-127 dBu (A-Weighted) |
Power
| Power Options | Batteries or AC/DC Power Adapter |
| Battery Type | 8 x AA (Not Included) |
| Approximate Battery Life | 48 kHz/16-Bit: 6 Hours (Alkaline, 2 Channels) 8.5 Hours (Alkaline, 2 Channels) 12 Hours (Lithium, 2 Channels) 48 kHz/24-Bit: 3.5 Hours (Alkaline, All Channels) 6 Hours (NiMH, All Channels) 8 Hours (Lithium, All Channels) 192 kHz/24-Bit: 1 Hour (Alkaline, All Channels) 2 Hours (NiMH, All Channels) 3 Hours (Lithium, All Channels) |
| AC/DC Power Adapter | 12 VDC at 2 A (Included) |
Physical
| Dimensions | 7 x 5.5 x 2.1″ / 178.2 x 140.3 x 54.3 mm |
| Weight | 2.2 lb / 1 kg |
